Oximeter

Description

This viewer allows you to mark invalid sections on the oximeter channel in order to generate a valid Oxygen Saturation Report via the tool Oxygen Saturation Report. The invalid sections marked are saved as annotations in the accessory file.

Open a PSG file

There are two mays to open a PSG for the Oximeter Viewer.
The user can open a PSG file by navigating to the Snnoz menu :

  1. “File” -> “Open”, and select the Oximeter app.

  2. “Viewers” -> “Oximeter”, and click on “Open File” in the left panel of the Oximeter Viewer.

Select the “Montage” and the label to identify the “Oximeter channel”.

Warning

Please, do not interact with the Snooz interface while the file is loading.

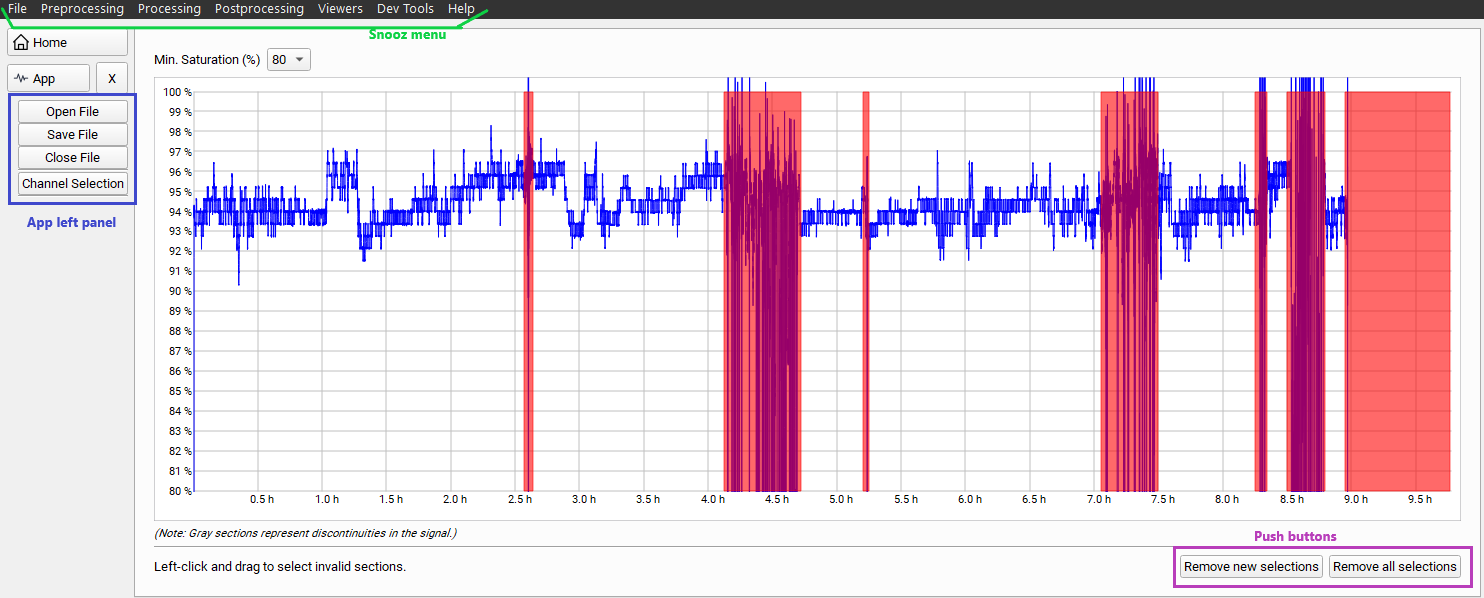

Alternative text

Mark an invalid sections

To define an invalid section, left-click the mouse and drag to select the period of time the section is invalid.

Note

The invalid sections are displayed in red on the oximeter channel.

Remove invalid sections

Two push buttons allow you to delete invalid sections.

  • Remove new selections : remove all new selections, the ones just created via the Oximeter viewer, and keep the ones saved in the accessory file.

  • Remove all selections : remove all selections, including the ones already saved in the accessory file.

Save the selections

To save the selections as annotations in the accessory file, press the “Save File” button in the left panel of the viewer. A dialog window will inform the user when the file is saved.

The invalid section annotations are defined as : * group label: SpO2 * name label: art_SpO2 * start_sec: start time of the invalid section in seconds elapsed from the beginning of the recording. * duration_sec : the duration of the invalid section in seconds. * channels : the list of channels on which the section is invalid, e.g., the oximeter channel, such as ‘SpO2’.
